Antenna Exe Series

Download Data Sheet

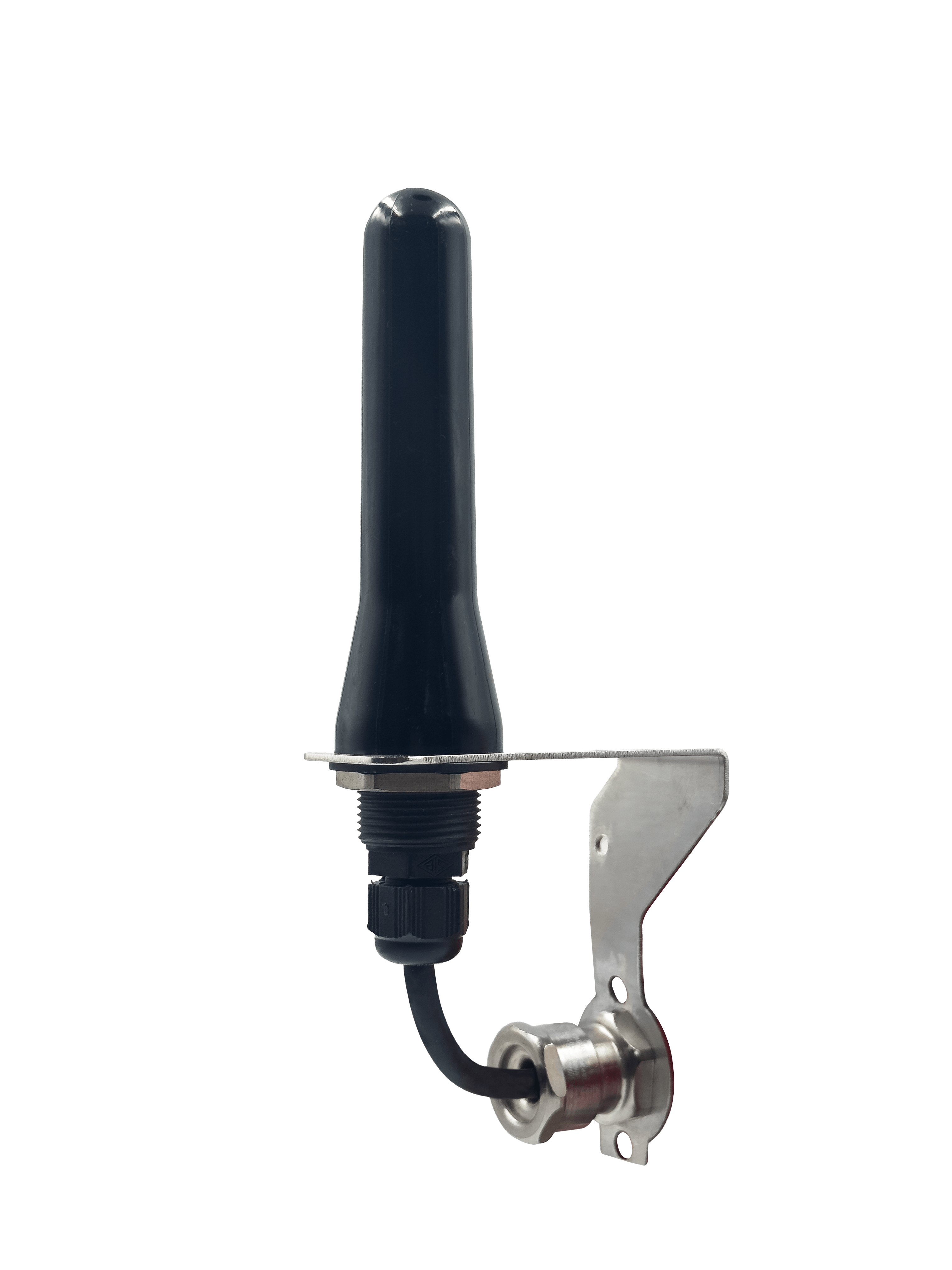

Antenna Exe Series

Flexible, Barrier-Free Antenna Solution

The Antenna Exe Series by Mimes delivers unmatched versatility for ISA100, WirelessHART, and other 2.4GHz/5GHz applications in hazardous environments. Designed to eliminate complex barriers, this Exe-certified antenna enables direct mounting with no additional components.

Globally certified (ATEX/IECEx) with universal 2.4GHz/5GHz support for industrial IoT

Key Features & Benefits

  • Universal compatibility: Supports ISA100, WirelessHART, WLAN, Bluetooth, Zigbee
  • Exe-certified design: No barriers needed—compact, plug-and-play installation
  • Pre-terminated cables: Multiple lengths for field flexibility
  • Omni-directional coverage: Optimal horizontal/vertical signal propagation
  • UV-stable polycarbonate: Lightweight yet rugged for harsh conditions

Approvals & Standards

CertificationsDNV 23 ATEX 38756X, IECEx DNV 23.0018X
StandardsEN/IEC 60079-0/7/31
Hazardous Area CodingEx eb IIC T6-T5 Gb, Ex tb IIIC T135°C Db

Technical Specifications

Frequency Range2400–5800 MHz
GainUp to 4dBi
Ingress ProtectionIP66/67
Max Input Power2W (Ex limitation)
Operating Temperature-20°C to +70°C
Enclosure MaterialUV-stable polycarbonate (black)

Deployment Advantages

  • Bracket-mounted: Flexible field installation
  • Reduced IoT costs: Simplifies digital transition
  • Tropicalization-ready: For high humidity/temperature environments
