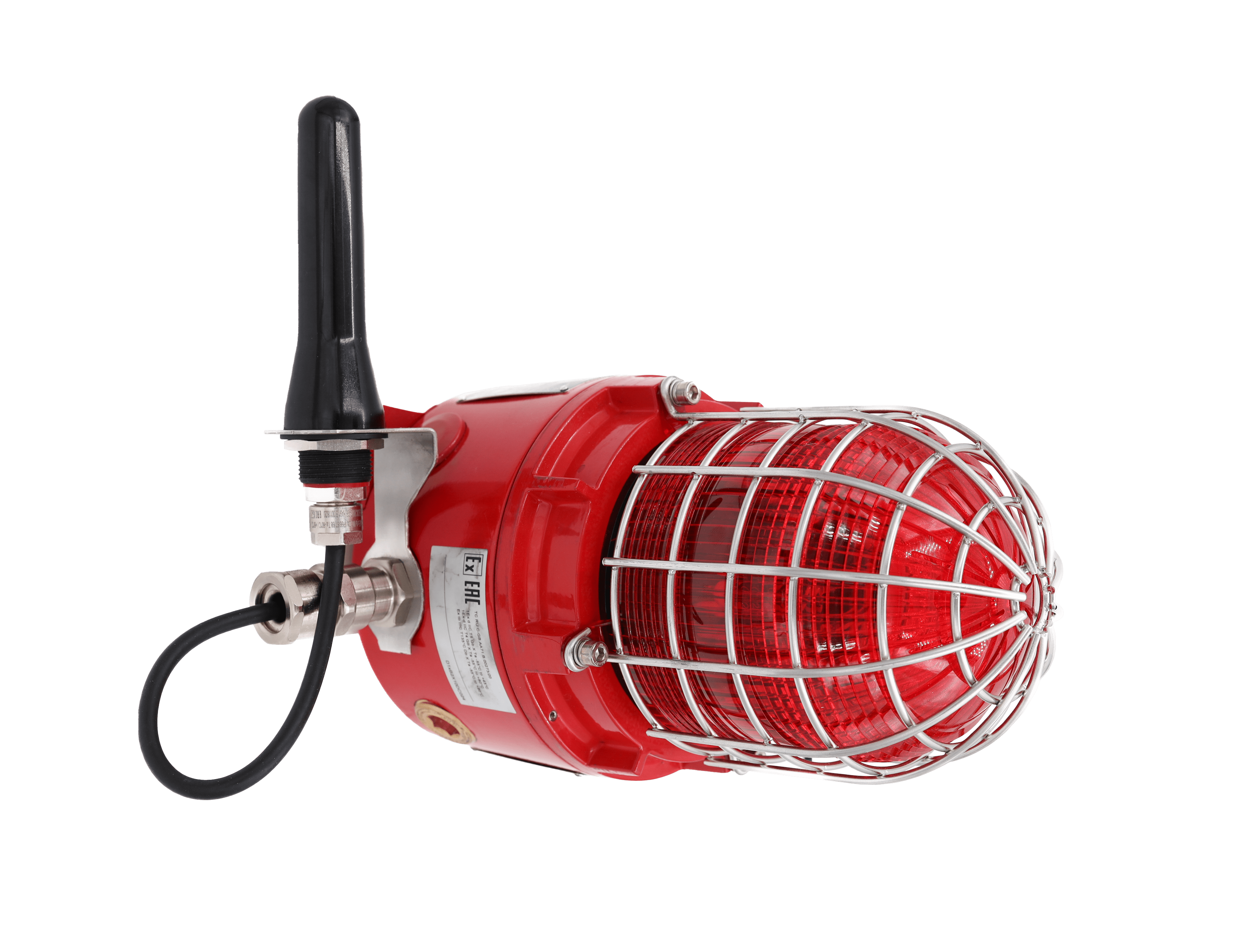

The RadioBeacon RB-LED GRP Series combines SIL1/SIL2 compliance, Exd certification, and encrypted ISA100 wireless communication in a rugged IP66 GRP enclosure. Designed for Zones 1, 2, 21 & 22, it delivers high-intensity LED signaling with configurable flash rates for hazardous environments.
LED beacon for Zone 1/2/21/22 with ISA100 and Wireless HART support. Configurable flash modes, and SIL1 & SIL2-capable design.
First Exd-certified wireless beacon with SIL2 support via PROFIsafe over ISA100.11a
| Standards | IECEx, ATEX, EAC, SIL1/SIL2 (IEC 61508) |
|---|---|
| Hazardous Area Coding | Ex db IIC Gb (T4-T6), Ex tb IIIC Db |
| Wireless Protocols | ISA100.11a, PROFIsafe, HART, Modbus |
| LED Source | 4 x Cree LEDs (60,000+ hours) |
|---|---|
| Voltage | 24V DC (20-28V range) |
| Ingress Protection | IP66/67 (NEMA 4/4X/3R/13) |
| Operating Temperature | -20°C to +70°C |
| Wireless Range | 500m (Ex) / 2000m (non-Ex) |
