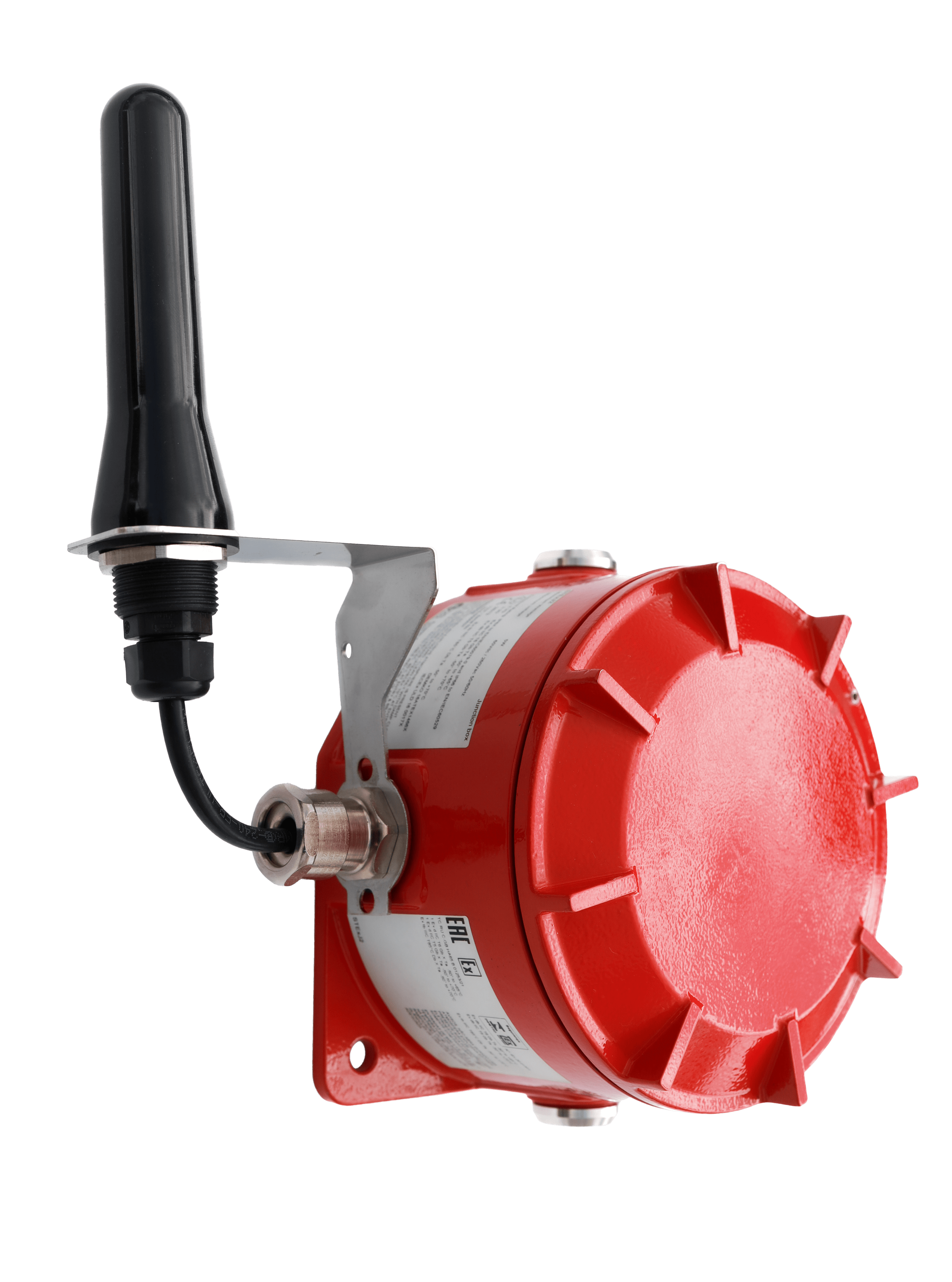

The RadioHub Serial RH-SE transforms wired equipment into wireless IoT devices via RS485 connection, supporting Modbus RTU by default with other protocols available. This intrinsically safe solution uses industrial ISA100 or WirelessHART protocols with 128-bit AES encryption, designed for battery-powered operation in Zone 1 hazardous areas.
Industry's first battery-powered wireless serial converter with ISA100/WirelessHART support
| Hazardous Area | Ex ib IIC T4 Gb (Zone 1) |
|---|---|
| Standards | IECEx, ATEX, EN/IEC 60079 series |
| Ingress Protection | IP66 |
| Power Supply | 7.2V DC (2 x Tadiran SL-2780 batteries) |
|---|---|
| Operating Temp | -20°C to +70°C |
| Wireless Protocols | ISA100.11a (WirelessHART pending) |
| Serial Interface | RS485 (Modbus RTU default) |
| Dimensions | 386 × 172 × 111 mm (with bracket) |
